Intronik STF

90 000 RUB - Dealer price from 10 pieces
TypeGround metal detector; 21 mm coin35-38 cm. with coil 13 inch reel; 32 mm coinmaximum 55-59 cm. coil 13 inch reel; Maximum depth1.5 meters | Depth program 2 m.; Battery life12 hours. for 18650 2 pcs.; Shipping Weight5 kg; Version2.0; All specifications

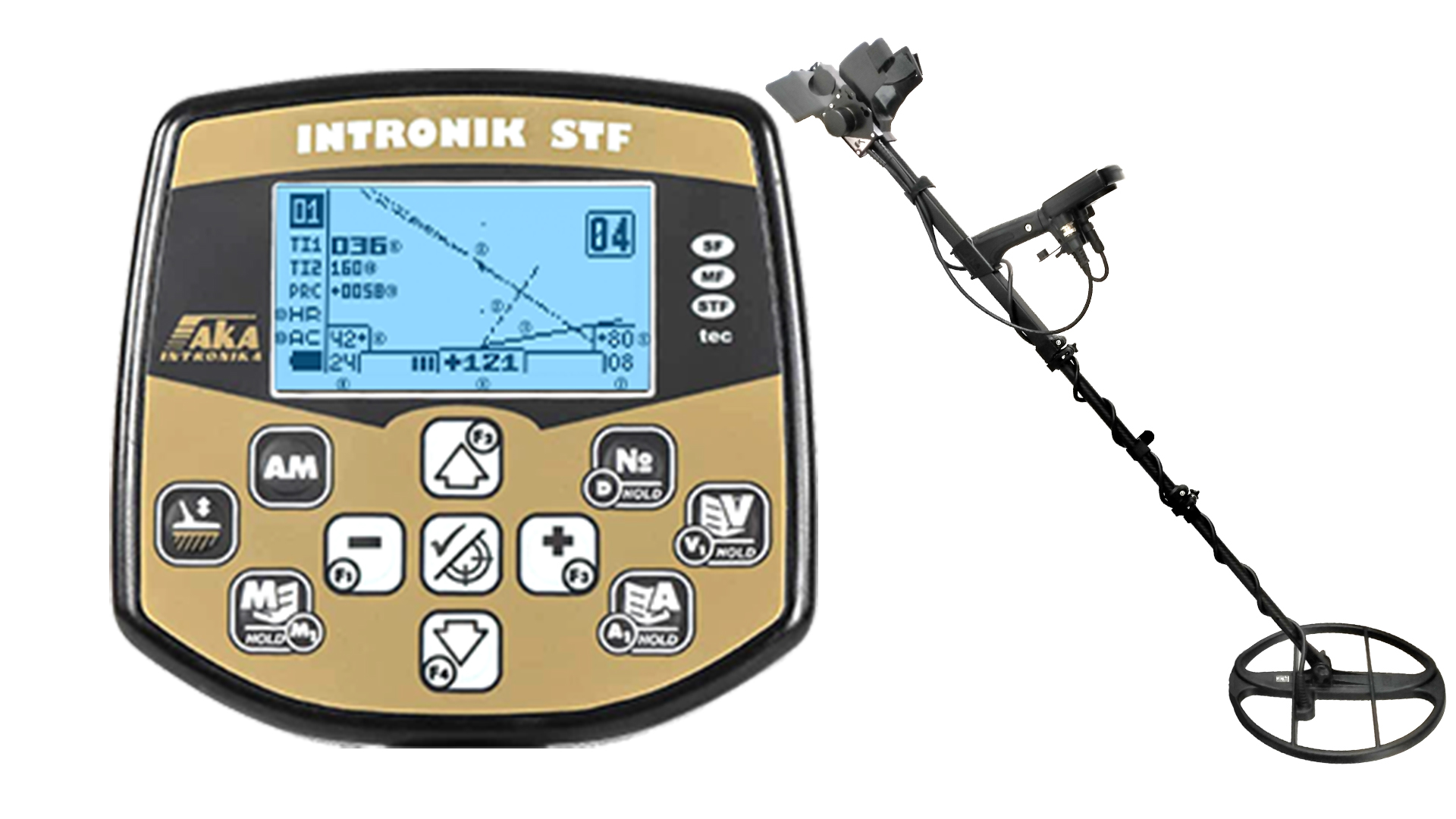

Intronik STF – ground metal detector with metal indentification.

* You can leave a preliminary reservation*

Metal detector Intronik STF is a modern technology designed to search for metal at an a considerable depth. Stylish appearance and the ability to search for required items despite obstacles make this device an excellent choice only for a professional.


  • Length: 560 mm (disassembled) -1430 mm (assembled)
  • Weight: 1930 grams with lithium batteries.
  • Operating frequencies: Two frequencies simultaneously. Frequency pair depends on mounted sensor. Standard options: 1kHz – 8kHz ; 2kHz – 14kHz ; 5kHz – 40kHz; ; 7kHz – 60kHz ;
  • Batteries: Possible performance at 2 pcs. Lithium cells 18650 3.7v
  • Average battery life 18650 AKB 8-10 hours.
  • Indication: Sound indication / Graphic display
  • Coils: Removable. Standard sizes: 6" 10х6" ; 12х9" ; 13" ; 15" ; 18" ; 25"
  • Search coil: not included. Select the required coil on the sat

Particular qualities:

  • High detection sensitivity: large and small metal objects are detected in any type of soil including saline soil.
  • Patented ground offset method "Soil compensation". It allows to work at any type of soil (even if it is highly mineralized). Unlike devices with offset "Ground balance" to save the depth of detection in the ground, close to target distance by air.
  • It can work at two frequencies at once and also at each frequency individually. Increasing sensitivity to separate groups of targets in simple ground conditions.
  • High degree of visualization of the properties of the detected target for each of the frequencies individually and cumulative value at the same time. It can be digital and graphic. It allows to determine calibrated search targets with known properties to the operator exactly. And also to define properties of unknown target before removing it from the ground with high probability.
  • Detection depth: exceeds all devices with metal indentification which exists in the market presently.
  • Universalism of Intronik STF: It is able to detect both small and large objects. And also it can work at tasks of searching deep treasures (to detect large metal objects under surface litter). It fits for military searching.
  • Replaceable sensors of various sizes and frequency characteristics. It allows to solve various searching problems as efficiently as possible. From searching low signal small objects to deep searching large metal objects including objects which are under surface litter.

Included in kit:

1.      Metal detector Intronik STF

2.      A packing bag for a detachable electronic unit of the metal detector.

3.      Search coil 12х9"

4.      Wired headphones (optional wireless headphones available)

5.      Charging device

6.      NiMH or lithium batteries (2 sets)

7.      Field backpack

8.      User manual.



Instructions for 1.0.


- Download.
Firmware (Version 1.0)
 - Download.
Firmware (Version 2.0)
- Download.
Firmware (Version 2.14)
- Download
Firmware (Version 2.15)
- Download
Firmware (Version 2.23)
- Download
Firmware (Version 2.30)
- Download
Firmware (Version  2.00 final)
- Download

Ground metal detector
21 mm coin
35-38 cm. with coil 13 inch reel
32 mm coin
maximum 55-59 cm. coil 13 inch reel
Maximum depth
1.5 meters | Depth program 2 m.
Battery life
12 hours. for 18650 2 pcs.
Shipping Weight
5 kg
Operating temperature range
+ 50 | - 20
Working frequency
Dual frequency metal detector
Any headphones with Bluetooth ATIX LL must be purchased separately
Transmission technology
